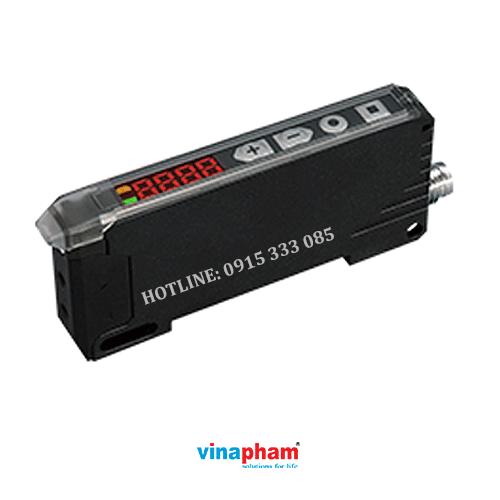

Bộ khuyếch đại sợi quang D1RF series - Teach-In + Display type
- Thương hiệu: OPTEX-FA
- Mã sản phẩm: OPTEX-AMPLIFIER
- Tình trạng: Còn trong kho
Liên hệ
Giá sau Thuế: Liên hệ
Bộ khuyếch đại fiber sensor D1RF- Optex-Fa, bộ khuyếch đại độc lập kết nối sợi quang fiber dùng cho phát hiện vật ở những vị trí khó gắn cảm biến, vị trí nhỏ.
Intelligent & flexible

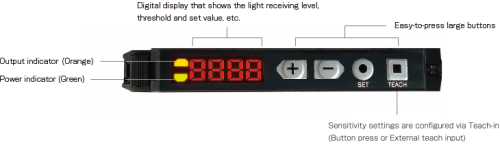

- Teach-In + Display type

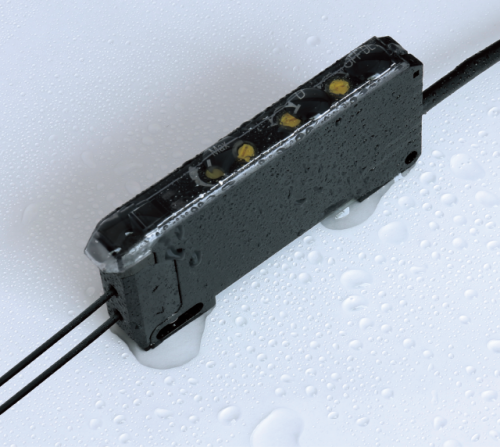

- Degree of protection: IP66
- Mounting holes for M3 screws
-
Response time switching is possible
It is possible to switch the response time between the standerd 250 μs and the high-speed responce of 50 μs.
This is effective in detecting small workpieces travelling at high speeds.
-
Emitted light power reducing function
Switching between three levels of emitted light power is possible. Because saturation of received light can be prevented by reducing emitted light power, it is useful when detecting at short distances or when detecting transparent objects or small objects.
-
NPN/PNP switchable
The control output can be used by switching between either NPN or PNP. Thanks to this, stock can be reduced and order errors eliminated.
-
Timer function
Equipped with timer function in which ON delay, OFF delay and One-shot can be selected. The delay time can also be set in 1 ms increments within a range of 1 to 9999 ms.
| THÔNG SỐ CƠ BẢN | |
| Model | D1RF - IP66 Rated - NEW |
| Tín hiệu đầu ra | NPN/PNP type Open collector Max. 100 mA/30 VDC |
| Voltage | 10 to 30 VDC (including 10% ripple) |
| Thời gian phản hồi | 250 μｓ / 50 μｓ |
