We’ve succeeded in lowering costs through in-house development of the chip-on-board Opto-ASIC, in which both a switching circuit and light receiving element have been integrated.
Employs a newly developed high-brightness 4 element LED
Longest sensing distance in the class!
Equipped with a newly developed 4 element red LED light source. In addition to minimizing the decreases in emitted light that occur over time, it features a through-beam type sensor with a longest-in-class 25 m sensing distance! Not only is detection over long distances possible, but it is also tolerant against dust and fine particles.
Eco-friendly

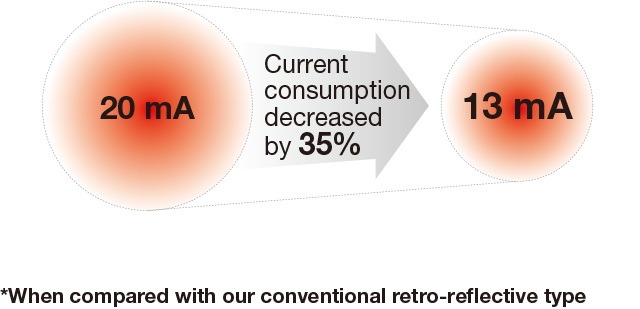

Ultra-low current consumption
Power consumption reduced by 35% *, contributing to the eco-friendliness of all devices and machinery.
Enhanced operability
Easy-to-see indicators and operating panel

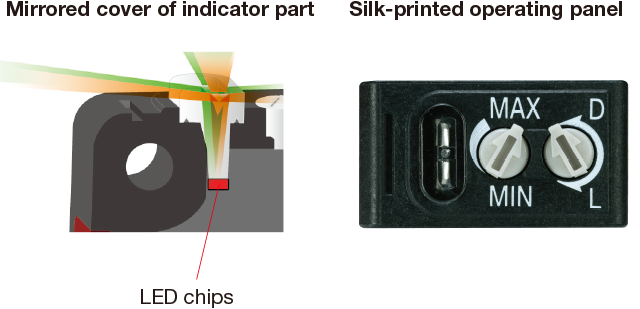

The indicator part is equipped with a cover featuring an inner-surface reflecting structure. The cover surface does not diffuse light, but instead improves visibility by reflecting light in multiple directions internally. Also, silk printing has been used for the operating panel. This is a user-friendly design that enables labelling to be easily seen even in dark areas.
THÔNG SỐ CƠ BẢN

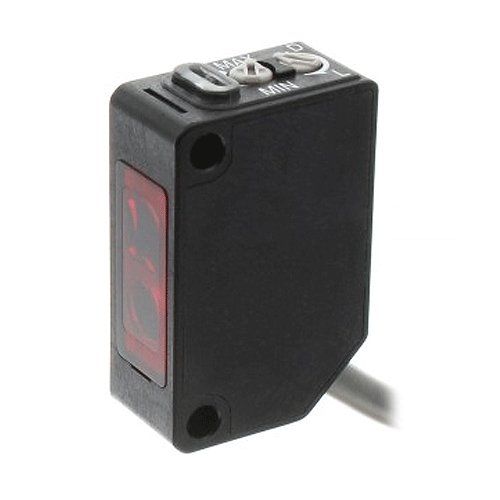

Model
Z2
Tín hiệu đầu ra
NPN/PNP
Voltage
DC10-30V
Spot size
Approx. ø1000 mm (at distance of 25 m) Approx. ø220 mm (at distance of 4.4 m) Approx. ø140 mm (at distance of 1 m)
