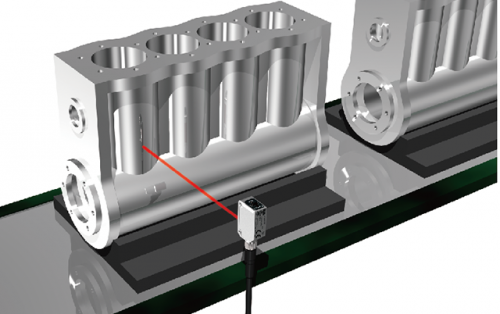

Tough against oil and coolant! Cost effective sensor with excellent oil resistance
Employs a newly developed high-brightness 4 element LED
Longest sensing distance in the class!

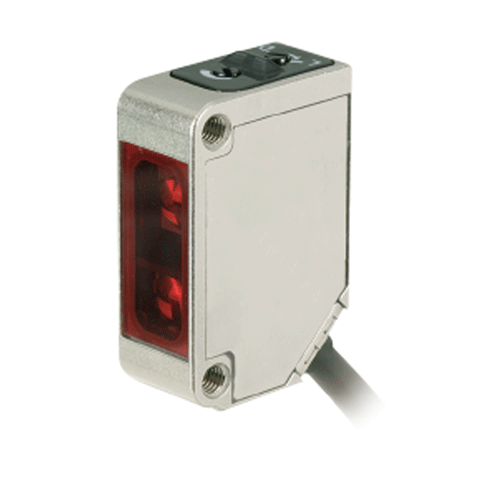

Equipped with a newly developed 4 element red LED light source. In addition to minimizing the decreases in emitted light that occur over time, it features a through-beam type sensor with a longest-in-class 30 m sensing distance! Not only is detection over long distances possible, but it is also tolerant against dust and fine particles.
▪High brightness 4 element red LED

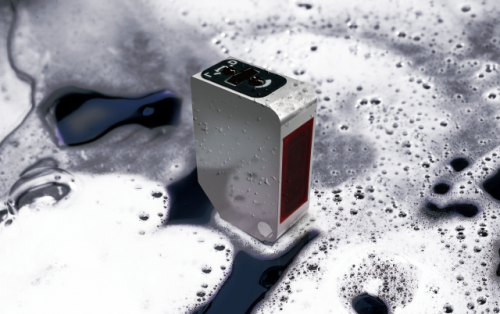

Degree of protection of cable type is IP69K

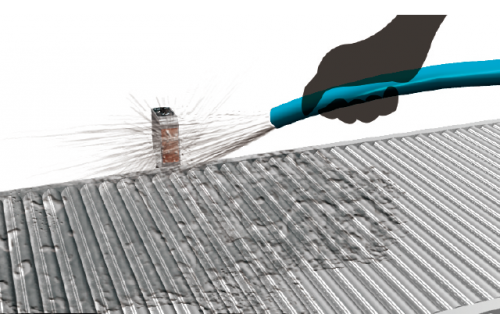

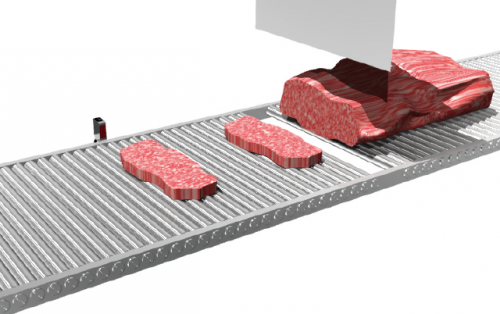

Achieved a degree of protection on IP66 that is tough against humidity, water, steam cleaning, etc. Sensor features a tough design that doesn’t break even when exposed to high-pressure washing on food processing machinery or when used in severe environments. Of course, it has also cleared IP67.
What is IP69K?
IP69K is a protection rating stipulated by German standard DIN40050 Part 9.
Test details:
Sensors are placed on a turntable and rotated 5 times per minute while being sprayed with water under the following conditions.
Water pressure:
80 to 100 bar
Flow rate:
14 to 16 l/m
Water temperature:
+80℃ / -5℃
Distance from spray nozzle:
100 to 150 mm
Spray angle:
0°, 30°, 60°, 90°
Spray time:
30 seconds at each angle
* IP69k does not guarantee operation under the above conditions. Water or oil that adhere to the optical surface could cause light to refract and prevent detection from being performed correctly. *Excluding connector type and refl ector.
THÔNG SỐ CƠ BẢN
Model
ZM
Tín hiệu đầu ra
NPN/PNP
Cable
Cable/ M8 connector type
Spot size
Thu phát độc lập: 1200mm, Thu phát chung: 40mm, Phản xạ gương: 300m, BGS sensor: 19mm
