IO-Link Hub UR-DS Series
- Thương hiệu: OPTEX-FA
- Mã sản phẩm: IO-Link Hub, Digital I/O UR-DS16D
- Tình trạng: 2-3 Ngày
Liên hệ
Giá sau Thuế: Liên hệ
Ms. Hà 0915 333 087/ 0868 099 385
Maximum number of channels at minimum cost
I/O devices require various units such as A/D converters depending on the interface, but on-site I/O devices can be combined to significantly reduce costs with our IO-Link Master and IO-Link Hub.
Unit that converts 1 CH of IO-Link ports in IO-Link Master to 16-point of digital I/O
IO-Link Hub, Digital I/O 16-input
UR-DS16D
IO-Link Hub, Digital I/O 16-output
UR-DS16T
IO-Link Hub,Digital I/O 8-input, 8-output
UR-DS8D8T
Unit that converts 1 CH of IO-Link ports in IO-Link Master to 4 CH of analogl I/O
Analog inputs are voltage (0 to 10 VDC, -10 to 10 VDC, 0 to 5 VDC, 1 to 5 VDC) and current (0 to 20 mA, 4 to 20 mA), switchable for each channel individually.

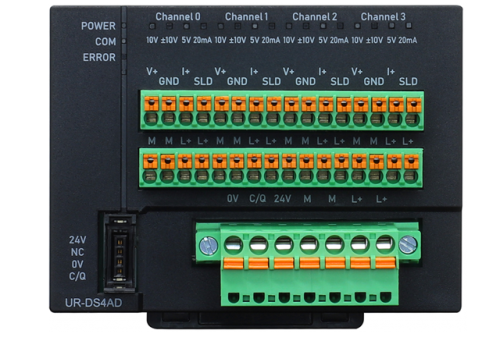

IO-Link Hub, Analog I/O 4-input
UR-DS4AD
IO-Link Hub, Analog I/O 4-output
UR-DS4DA

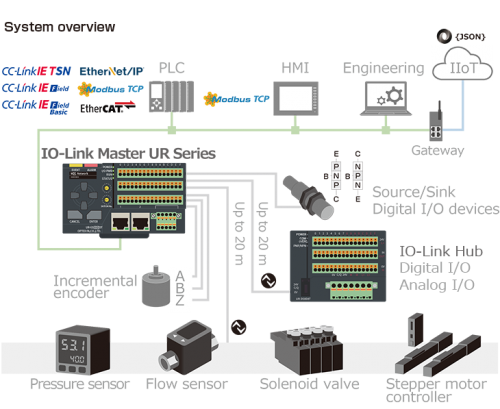

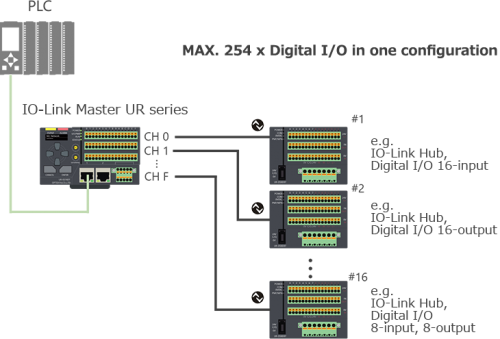

System configuration example
